BSP: ESP-WROVER-KIT
| HW Reference | HOW TO USE API | EXAMPLES |
|
|
| — | — | — | — | – |
Overview

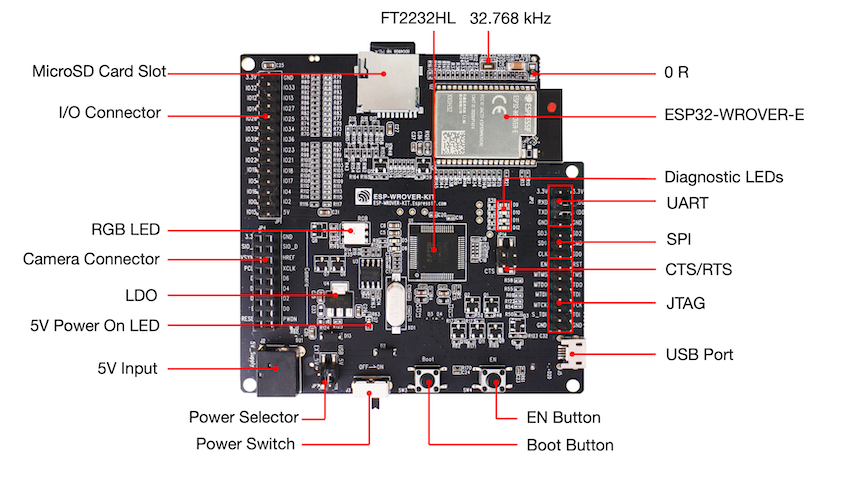

| ESP-WROVER-KIT is an ESP32-based development board produced by Espressif. This board features an integrated LCD screen and microSD card slot. **ESP-WROVER-KIT features the following integrated components:** * ESP32-WROVER-E module * LCD screen * microSD card slot * RGB LED |
|
Its another distinguishing feature is the embedded FTDI FT2232HL chip - an advanced multi-interface USB bridge. This chip enables to use JTAG for direct debugging of ESP32 through the USB interface without a separate JTAG debugger. ESP-WROVER-KIT makes development convenient, easy, and cost-effective.
Most of the ESP32 I/O pins are broken out to the board’s pin headers for easy access.
Capabilities and dependencies
| Available | Capability |Controller/Codec| Component |Version|
|------------------|------------------------|----------------|----------------------------------------------------------------------------------------------|-------|
|:heavy_check_mark:| :pager: DISPLAY | st7789 | idf |>=4.4.5|
|:heavy_check_mark:|:black_circle: LVGL_PORT| |[espressif/esp_lvgl_port](https://components.espressif.com/components/espressif/esp_lvgl_port)| ^2 |
| :x: | :point_up: TOUCH | | | |
|:heavy_check_mark:| :radio_button: BUTTONS | | [espressif/button](https://components.espressif.com/components/espressif/button) | ^4 |
| :x: | :musical_note: AUDIO | | | |
| :x: | :speaker: AUDIO_SPEAKER| | | |
| :x: | :microphone: AUDIO_MIC | | | |
|:heavy_check_mark:| :bulb: LED | | idf |>=4.4.5|
|:heavy_check_mark:| :floppy_disk: SDCARD | | idf |>=4.4.5|
| :x: | :video_game: IMU | | | |
| :x: | :camera: CAMERA | | | |
Compatible BSP Examples
| Example | Description | Try with ESP Launchpad |
| ------- | ----------- | ---------------------- |
| [Display Example](https://github.com/espressif/esp-bsp/tree/master/examples/display) | Show an image on the screen with a simple startup animation (LVGL) | [Flash Example](https://espressif.github.io/esp-launchpad/?flashConfigURL=https://espressif.github.io/esp-bsp/config.toml&app=display-) |
