BSP: ESP32-S3-USB-OTG
| HW Reference | HOW TO USE API | EXAMPLES |
|
|
| — | — | — | — | – |
Overview

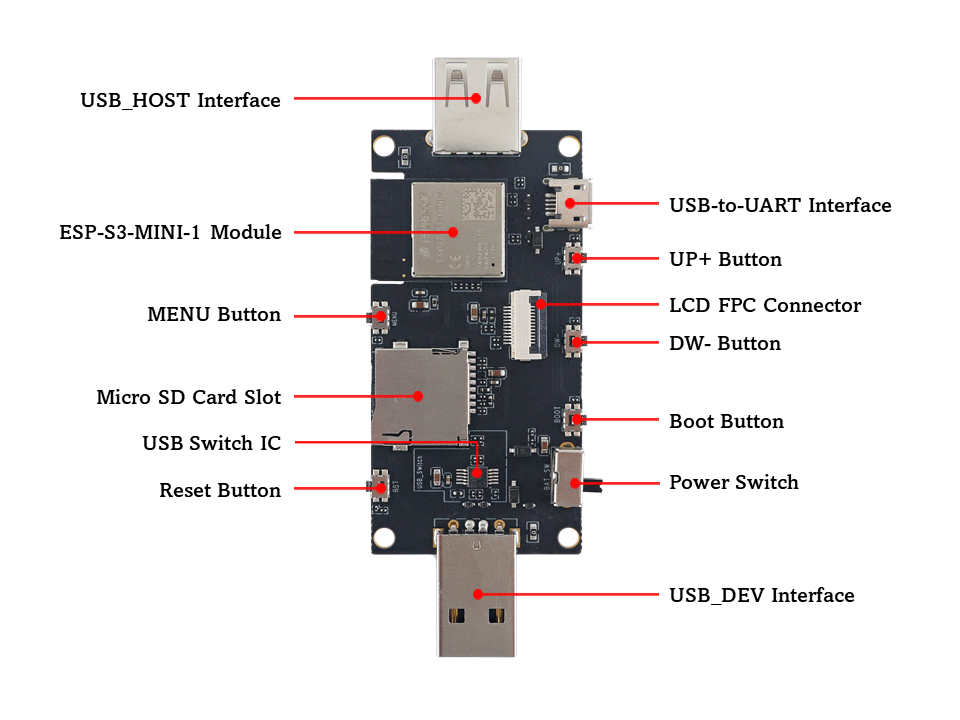

| ESP32-S3-USB-OTG is a development board that focuses on USB-OTG function verification and application development. It is based on ESP32-S3 SoC, supports Wi-Fi and BLE 5.0 wireless functions, and supports USB host and USB device functions. It can be used to develop applications such as wireless storage devices, Wi-Fi network cards, LTE MiFi, multimedia devices, virtual keyboards and mice. **The development board has the following features:** * Onboard ESP32-S3-MINI-1-N8 module, with built-in 8 MB flash * Onboard USB Type-A host and device interface, with built-in USB interface switching circuit * Onboard USB to serial debugging chip (Micro USB interface) * Onboard 1.3-inch LCD color screen, supports GUI * Onboard SD card interface, compatible with SDIO and SPI interfaces * Onboard charging IC, can be connected to lithium battery |
|
Capabilities and dependencies
| Available | Capability |Controller/Codec| Component |Version|
|------------------|------------------------|----------------|----------------------------------------------------------------------------------------------|-------|
|:heavy_check_mark:| :pager: DISPLAY | st7789 | idf |>=5.1.3|
|:heavy_check_mark:|:black_circle: LVGL_PORT| |[espressif/esp_lvgl_port](https://components.espressif.com/components/espressif/esp_lvgl_port)| ^2 |
| :x: | :point_up: TOUCH | | | |
|:heavy_check_mark:| :radio_button: BUTTONS | | [espressif/button](https://components.espressif.com/components/espressif/button) | ^4 |
| :x: | :musical_note: AUDIO | | | |
| :x: | :speaker: AUDIO_SPEAKER| | | |
| :x: | :microphone: AUDIO_MIC | | | |
|:heavy_check_mark:| :floppy_disk: SDCARD | | idf |>=5.1.3|
| :x: | :video_game: IMU | | | |
|:heavy_check_mark:| :bulb: LED | | idf |>=5.1.3|
|:heavy_check_mark:| :battery: BAT | | idf |>=5.1.3|
Compatible BSP Examples
| Example | Description | Try with ESP Launchpad |
| ------- | ----------- | ---------------------- |
| [Display Example](https://github.com/espressif/esp-bsp/tree/master/examples/display) | Show an image on the screen with a simple startup animation (LVGL) | [Flash Example](https://espressif.github.io/esp-launchpad/?flashConfigURL=https://espressif.github.io/esp-bsp/config.toml&app=display-) |
| [USB HID Example](https://github.com/espressif/esp-bsp/tree/master/examples/display_usb_hid) | USB HID demo (keyboard, mouse, or gamepad visualization using LVGL) | - |
