BSP: ESP32-S3-KORVO-1
| HW Reference | HOW TO USE API | EXAMPLES |
|
|
| — | — | — | — | – |
Overview

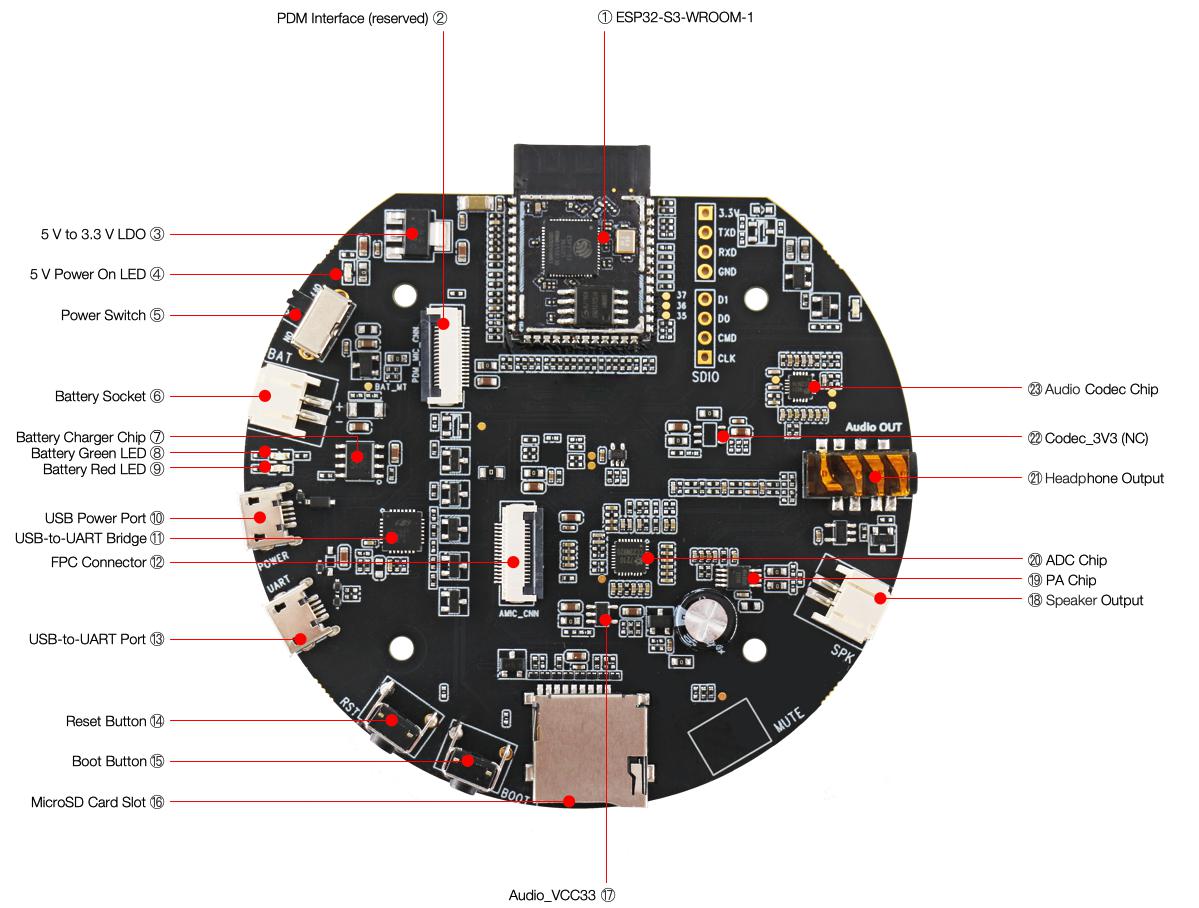

| ESP32-S3-Korvo-1 is a development kit that is based on Espressif’s ESP32-S3 SoC. It features a three-microphone array which is suitable for far-field voice pick-up with low power consumption. The ESP32-S3-Korvo-1 board consists of two parts: the main board (ESP32-S3-Korvo-1) that integrates the ESP32-S3-WROOM-1 module, function buttons, SD card slot, speaker and USB connectors; and the sub board (ESP32-Korvo-Mic, which is also used as the sub board in ESP32-Korvo v1.1) that contains a three-microphone array, function buttons, and addressable LEDs. The main board and sub board are connected via FPC cable. |
|
Capabilities and dependencies
| Available | Capability |Controller/Codec| Component | Version |
|------------------|-----------------------|----------------|------------------------------------------------------------------------------------------------------|--------------|
| :x: | :pager: DISPLAY | | | |
| :x: | :point_up: TOUCH | | | |
|:heavy_check_mark:| :radio_button: BUTTONS| | [espressif/button](https://components.espressif.com/components/espressif/button) | ^4 |
|:heavy_check_mark:| :musical_note: AUDIO | | [espressif/esp_codec_dev](https://components.espressif.com/components/espressif/esp_codec_dev) | ~1.5 |
|:heavy_check_mark:|:speaker: AUDIO_SPEAKER| es8311 | | |
|:heavy_check_mark:| :microphone: AUDIO_MIC| es7210 | | |
|:heavy_check_mark:| :floppy_disk: SDCARD | | idf | >=5.3 |
| :x: | :video_game: IMU | | | |
|:heavy_check_mark:| :bulb: LED | |idf
[espressif/led_indicator](https://components.espressif.com/components/espressif/led_indicator)|>=5.3
~2.0|
[espressif/led_indicator](https://components.espressif.com/components/espressif/led_indicator)|>=5.3
~2.0|
Compatible BSP Examples
| Example | Description | Try with ESP Launchpad |
| ------- | ----------- | ---------------------- |
| [Audio Example](https://github.com/espressif/esp-bsp/tree/master/examples/audio) | Play and record WAV file | [Flash Example](https://espressif.github.io/esp-launchpad/?flashConfigURL=https://espressif.github.io/esp-bsp/config.toml&app=audio-) |
