BSP: ESP32-P4-EYE
| HW Reference | HOW TO USE API | EXAMPLES |
|
|
| — | — | — | — | — |
Overview

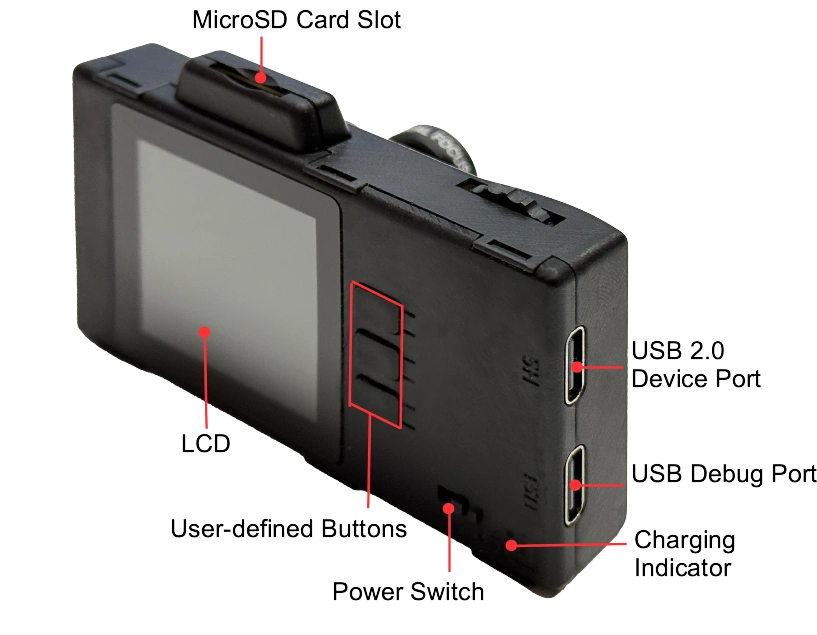

| ESP32-P4-EYE is a vision development board based on the ESP32-P4 chip, mainly targeting camera applications. ESP32-P4 features a dual-core RISC-V processor and supports up to 32 MB of PSRAM. In addition, ESP32-P4 supports USB 2.0 standard, MIPI-CSI/DSI, H264 Encoder, and various other peripherals. With all of its outstanding features, the board is an ideal choice for developing low-cost, high-performance, low-power network-connected audio and video products. |
|
|
|
Capabilities and dependencies
| Available | Capability |Controller/Codec| Component | Version |
|------------------|------------------------|----------------|------------------------------------------------------------------------------------------------------|------------|
|:heavy_check_mark:| :pager: DISPLAY | st7789 | idf | >=5.4 |
|:heavy_check_mark:|:black_circle: LVGL_PORT| | [espressif/esp_lvgl_port](https://components.espressif.com/components/espressif/esp_lvgl_port) | ^2 |
| :x: | :point_up: TOUCH | | | |
|:heavy_check_mark:| :radio_button: BUTTONS | | [espressif/button](https://components.espressif.com/components/espressif/button) | ^4 |
|:heavy_check_mark:| :white_circle: KNOB | | [espressif/knob](https://components.espressif.com/components/espressif/knob) | ^1 |
|:heavy_check_mark:| :musical_note: AUDIO | | [espressif/esp_codec_dev](https://components.espressif.com/components/espressif/esp_codec_dev) | ~1.5 |
| :x: | :speaker: AUDIO_SPEAKER| | | |
|:heavy_check_mark:| :microphone: AUDIO_MIC | | | |
|:heavy_check_mark:| :floppy_disk: SDCARD | | idf | >=5.4 |
|:heavy_check_mark:| :bulb: LED | |idf
[espressif/led_indicator](https://components.espressif.com/components/espressif/led_indicator)|>=5.4
^2| |:heavy_check_mark:| :camera: CAMERA | | | | |:heavy_check_mark:| :battery: BAT | | idf | >=5.4 | | :x: | :video_game: IMU | | | |
[espressif/led_indicator](https://components.espressif.com/components/espressif/led_indicator)|>=5.4
^2| |:heavy_check_mark:| :camera: CAMERA | | | | |:heavy_check_mark:| :battery: BAT | | idf | >=5.4 | | :x: | :video_game: IMU | | | |
Compatible BSP Examples
| Example | Description | Try with ESP Launchpad |
| ------- | ----------- | ---------------------- |
| [Display Example](https://github.com/espressif/esp-bsp/tree/master/examples/display) | Show an image on the screen with a simple startup animation (LVGL) | [Flash Example](https://espressif.github.io/esp-launchpad/?flashConfigURL=https://espressif.github.io/esp-bsp/config.toml&app=display-) |
| [Camera Example (MIPI-CSI)](https://github.com/espressif/esp-bsp/tree/master/examples/display_camera_csi) | Stream camera (MIPI-CSI) output to display (LVGL) | [Flash Example](https://espressif.github.io/esp-launchpad/?flashConfigURL=https://espressif.github.io/esp-bsp/config.toml&app=display_camera-) |
| [LVGL Demos Example](https://github.com/espressif/esp-bsp/tree/master/examples/display_lvgl_demos) | Run the LVGL demo player - all LVGL examples are included (LVGL) | [Flash Example](https://espressif.github.io/esp-launchpad/?flashConfigURL=https://espressif.github.io/esp-bsp/config.toml&app=display_lvgl_demos-) |
| [Display Rotation Example](https://github.com/espressif/esp-bsp/tree/master/examples/display_rotation) | Rotate screen using buttons or an accelerometer (`BSP_CAPS_IMU`, if available) | [Flash Example](https://espressif.github.io/esp-launchpad/?flashConfigURL=https://espressif.github.io/esp-bsp/config.toml&app=display_rotation-) |
