BSP: ESP-BOX-Lite
| HW Reference | HOW TO USE API | EXAMPLES |
|
|
| — | — | — | — | – |
:warning: ESP-BOX-Lite is deprecated. This BSP is provided as-is with no further development and compatibility maintenance
Overview

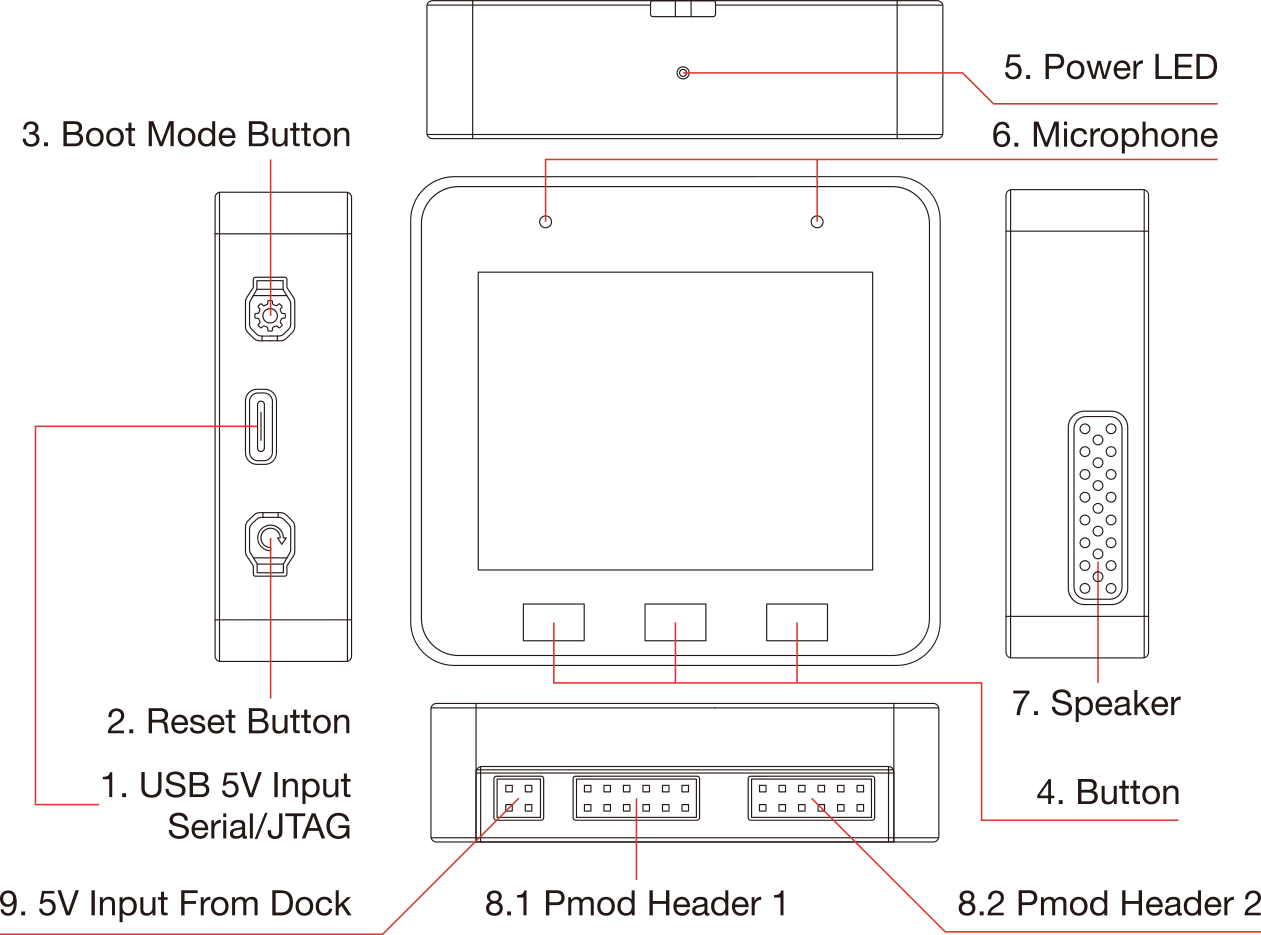

| ESP32-S3-BOX-Lite is an AI voice development kit that is based on Espressif’s ESP32-S3 Wi-Fi + Bluetooth 5 (LE) SoC, with AI capabilities. In addition to ESP32-S3’s 512KB SRAM, ESP32-S3-BOX-Lite comes with 16MB of QSPI flash and 8MB of Octal PSRAM. It is also equipped with a variety of peripherals, such as a 2.4-inch display with a 320x240 resolution, a microphone, a speaker, and two Pmod™-compatible headers which allow for the extensibility of the hardware. ESP32-S3-BOX-Lite also uses a Type-C USB connector that provides 5 V of power input, while also supporting serial and JTAG debugging, as well as a programming interface; all through the same connector. |
|
Capabilities and dependencies
| Available | Capability |Controller/Codec| Component | Version |
|------------------|------------------------|----------------|----------------------------------------------------------------------------------------------|------------|
|:heavy_check_mark:| :pager: DISPLAY | st7789 | idf |>=4.4.5,<6.0|
|:heavy_check_mark:|:black_circle: LVGL_PORT| |[espressif/esp_lvgl_port](https://components.espressif.com/components/espressif/esp_lvgl_port)| ^2 |
| :x: | :point_up: TOUCH | | | |
|:heavy_check_mark:| :radio_button: BUTTONS | | [espressif/button](https://components.espressif.com/components/espressif/button) | ^2.4 |
|:heavy_check_mark:| :musical_note: AUDIO | |[espressif/esp_codec_dev](https://components.espressif.com/components/espressif/esp_codec_dev)| ~1.1 |
|:heavy_check_mark:| :speaker: AUDIO_SPEAKER| es8156 | | |
|:heavy_check_mark:| :microphone: AUDIO_MIC | es7243e | | |
| :x: | :floppy_disk: SDCARD | | | |
| :x: | :video_game: IMU | | | |
Compatible BSP Examples
| Example | Description | Try with ESP Launchpad |
| ------- | ----------- | ---------------------- |
| [Display Example](https://github.com/espressif/esp-bsp/tree/master/examples/display) | Show an image on the screen with a simple startup animation (LVGL) | [Flash Example](https://espressif.github.io/esp-launchpad/?flashConfigURL=https://espressif.github.io/esp-bsp/config.toml&app=display-) |
| [Display, Audio and Photo Example](https://github.com/espressif/esp-bsp/tree/master/examples/display_audio_photo) | Complex demo: browse files from filesystem and play/display JPEG, WAV, or TXT files (LVGL) | [Flash Example](https://espressif.github.io/esp-launchpad/?flashConfigURL=https://espressif.github.io/esp-bsp/config.toml&app=display_audio_photo-) |
| [LVGL Benchmark Example](https://github.com/espressif/esp-bsp/tree/master/examples/display_lvgl_benchmark) | Run LVGL benchmark tests | - |
| [LVGL Demos Example](https://github.com/espressif/esp-bsp/tree/master/examples/display_lvgl_demos) | Run the LVGL demo player - all LVGL examples are included (LVGL) | [Flash Example](https://espressif.github.io/esp-launchpad/?flashConfigURL=https://espressif.github.io/esp-bsp/config.toml&app=display_lvgl_demos-) |
| [Display Rotation Example](https://github.com/espressif/esp-bsp/tree/master/examples/display_rotation) | Rotate screen using buttons or an accelerometer (`BSP_CAPS_IMU`, if available) | [Flash Example](https://espressif.github.io/esp-launchpad/?flashConfigURL=https://espressif.github.io/esp-bsp/config.toml&app=display_rotation-) |
