BSP: ESP-BOX-3
| HW Reference | HOW TO USE API | EXAMPLES |
|
|
| — | — | — | — | — |
Overview

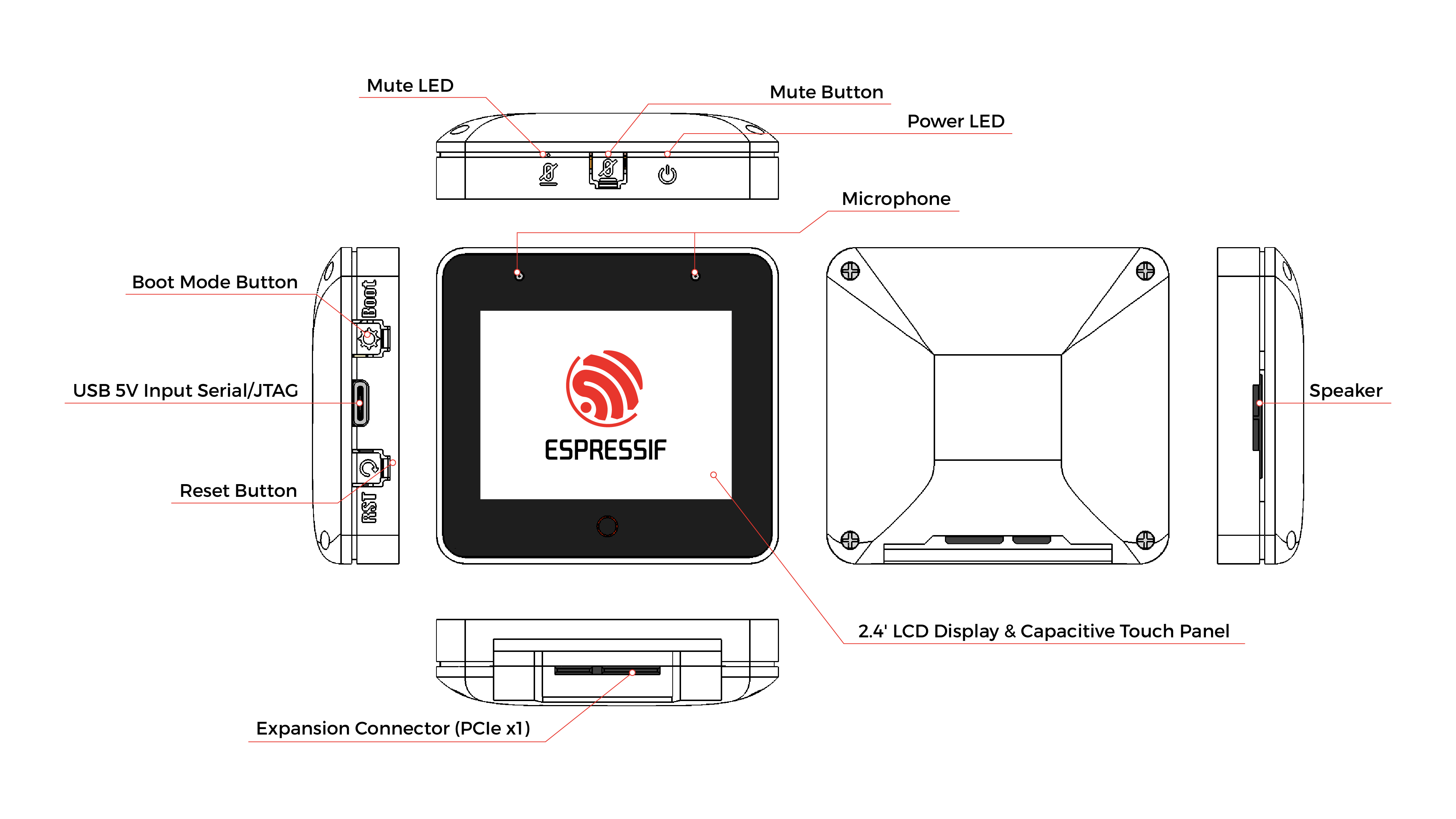

| ESP32-S3-BOX-3 is an AI voice development kit that is based on Espressif’s ESP32-S3 Wi-Fi + Bluetooth 5 (LE) SoC, with AI capabilities. In addition to ESP32-S3’s 512KB SRAM, ESP32-S3-BOX-3 comes with 16MB of QSPI flash and 16MB of Octal PSRAM. ESP32-S3-BOX-3 is also equipped with a variety of peripherals, such as a 2.4-inch display with a 320x240 resolution, a capacitive touch screen, a dual microphone, a speaker, and two Pmod™-compatible headers which allow for the extensibility of the hardware. ESP32-S3-BOX-3 also uses a Type-C USB connector that provides 5 V of power input, while also supporting serial and JTAG debugging, as well as a programming interface; all through the same connector. |
|
Capabilities and dependencies
| Available | Capability |Controller/Codec| Component | Version |
|------------------|------------------------|----------------|-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|----------------|
|:heavy_check_mark:| :pager: DISPLAY | st7789, ili9341| idf
[espressif/esp_lcd_ili9341](https://components.espressif.com/components/espressif/esp_lcd_ili9341) |>=5.3
^2.0.1| |:heavy_check_mark:|:black_circle: LVGL_PORT| | [espressif/esp_lvgl_port](https://components.espressif.com/components/espressif/esp_lvgl_port) | ^2 | |:heavy_check_mark:| :point_up: TOUCH | tt21100, gt911 |[espressif/esp_lcd_touch_tt21100](https://components.espressif.com/components/espressif/esp_lcd_touch_tt21100)
[espressif/esp_lcd_touch_gt911](https://components.espressif.com/components/espressif/esp_lcd_touch_gt911)| ^1
^1 | |:heavy_check_mark:| :radio_button: BUTTONS | | [espressif/button](https://components.espressif.com/components/espressif/button) | ^4 | |:heavy_check_mark:| :musical_note: AUDIO | | [espressif/esp_codec_dev](https://components.espressif.com/components/espressif/esp_codec_dev) | ~1.5 | |:heavy_check_mark:| :speaker: AUDIO_SPEAKER| es8311 | | | |:heavy_check_mark:| :microphone: AUDIO_MIC | es7210 | | | |:heavy_check_mark:| :floppy_disk: SDCARD | | idf | >=5.3 | |:heavy_check_mark:| :video_game: IMU | | [espressif/icm42670](https://components.espressif.com/components/espressif/icm42670) | ^2.0.2 |
[espressif/esp_lcd_ili9341](https://components.espressif.com/components/espressif/esp_lcd_ili9341) |>=5.3
^2.0.1| |:heavy_check_mark:|:black_circle: LVGL_PORT| | [espressif/esp_lvgl_port](https://components.espressif.com/components/espressif/esp_lvgl_port) | ^2 | |:heavy_check_mark:| :point_up: TOUCH | tt21100, gt911 |[espressif/esp_lcd_touch_tt21100](https://components.espressif.com/components/espressif/esp_lcd_touch_tt21100)
[espressif/esp_lcd_touch_gt911](https://components.espressif.com/components/espressif/esp_lcd_touch_gt911)| ^1
^1 | |:heavy_check_mark:| :radio_button: BUTTONS | | [espressif/button](https://components.espressif.com/components/espressif/button) | ^4 | |:heavy_check_mark:| :musical_note: AUDIO | | [espressif/esp_codec_dev](https://components.espressif.com/components/espressif/esp_codec_dev) | ~1.5 | |:heavy_check_mark:| :speaker: AUDIO_SPEAKER| es8311 | | | |:heavy_check_mark:| :microphone: AUDIO_MIC | es7210 | | | |:heavy_check_mark:| :floppy_disk: SDCARD | | idf | >=5.3 | |:heavy_check_mark:| :video_game: IMU | | [espressif/icm42670](https://components.espressif.com/components/espressif/icm42670) | ^2.0.2 |
Compatible BSP Examples
| Example | Description | Try with ESP Launchpad |
| ------- | ----------- | ---------------------- |
| [Display Example](https://github.com/espressif/esp-bsp/tree/master/examples/display) | Show an image on the screen with a simple startup animation (LVGL) | [Flash Example](https://espressif.github.io/esp-launchpad/?flashConfigURL=https://espressif.github.io/esp-bsp/config.toml&app=display-) |
| [Display, Audio and Photo Example](https://github.com/espressif/esp-bsp/tree/master/examples/display_audio_photo) | Complex demo: browse files from filesystem and play/display JPEG, WAV, or TXT files (LVGL) | [Flash Example](https://espressif.github.io/esp-launchpad/?flashConfigURL=https://espressif.github.io/esp-bsp/config.toml&app=display_audio_photo-) |
| [LVGL Benchmark Example](https://github.com/espressif/esp-bsp/tree/master/examples/display_lvgl_benchmark) | Run LVGL benchmark tests | - |
| [LVGL Demos Example](https://github.com/espressif/esp-bsp/tree/master/examples/display_lvgl_demos) | Run the LVGL demo player - all LVGL examples are included (LVGL) | [Flash Example](https://espressif.github.io/esp-launchpad/?flashConfigURL=https://espressif.github.io/esp-bsp/config.toml&app=display_lvgl_demos-) |
| [Display Rotation Example](https://github.com/espressif/esp-bsp/tree/master/examples/display_rotation) | Rotate screen using buttons or an accelerometer (`BSP_CAPS_IMU`, if available) | [Flash Example](https://espressif.github.io/esp-launchpad/?flashConfigURL=https://espressif.github.io/esp-bsp/config.toml&app=display_rotation-) |
LVGL Benchmark
DATE: 01.10.2025 13:12
LVGL version: 9.3.0
| Name | Avg. CPU | Avg. FPS | Avg. time | render time | flush time |
|---|---|---|---|---|---|
| Empty screen | 94% | 26 | 33 | 3 | 30 |
| Moving wallpaper | 97% | 25 | 36 | 6 | 30 |
| Single rectangle | 10% | 91 | 0 | 0 | 0 |
| Multiple rectangles | 91% | 50 | 16 | 2 | 14 |
| Multiple RGB images | 17% | 90 | 0 | 0 | 0 |
| Multiple ARGB images | 18% | 87 | 2 | 2 | 0 |
| Rotated ARGB images | 73% | 56 | 18 | 12 | 6 |
| Multiple labels | 89% | 79 | 9 | 3 | 6 |
| Screen sized text | 97% | 15 | 59 | 28 | 31 |
| Multiple arcs | 19% | 91 | 0 | 0 | 0 |
| Containers | 33% | 72 | 15 | 4 | 11 |
| Containers with overlay | 89% | 20 | 45 | 14 | 31 |
| Containers with opa | 49% | 70 | 19 | 7 | 12 |
| Containers with opa_layer | 60% | 53 | 27 | 16 | 11 |
| Containers with scrolling | 95% | 20 | 44 | 14 | 30 |
| Widgets demo | 97% | 25 | 25 | 11 | 14 |
| All scenes avg. | 64% | 54 | 21 | 7 | 14 |
